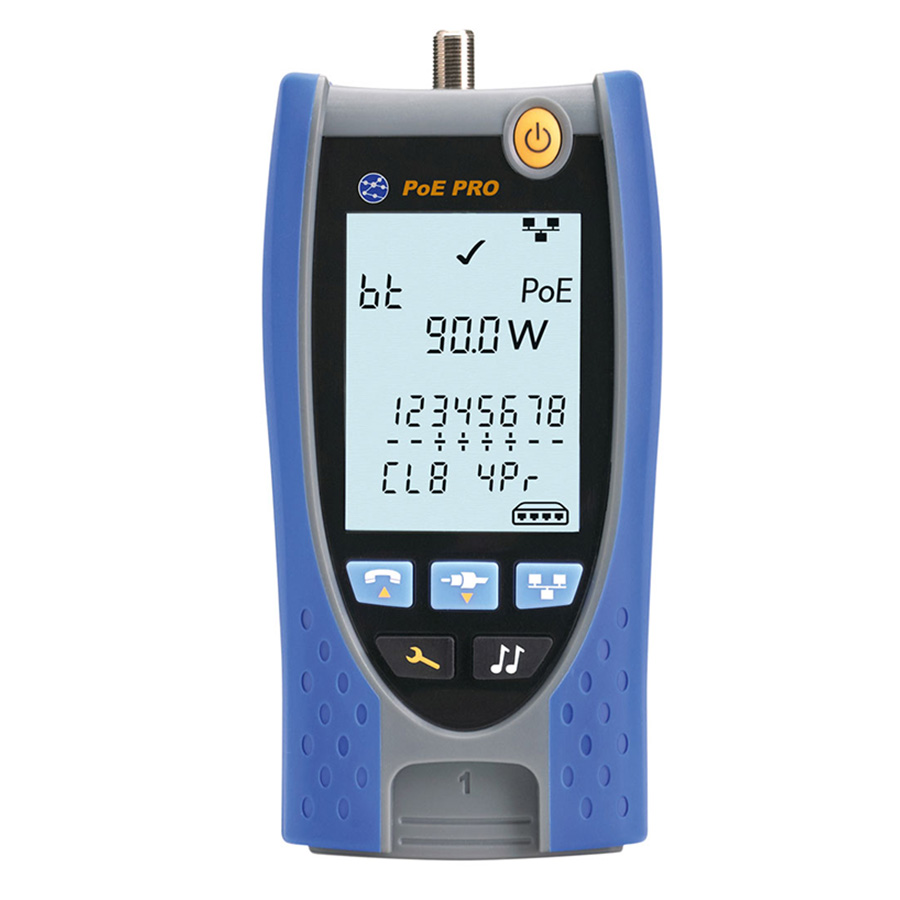

ST-158006 – PoE PRO Data Cable and PoE Verifier

The new PoE Pro eliminates guesswork when installing, maintaining, and troubleshooting networks where PoE is deployed. Previously technicians had to understand all the various standards, device power outputs, and cable lengths to be sure a device will operate successfully. The PoE Pro identifies the Class of the PoE source and power available to a PoE device regardless of cable length, cable quality, or other factors.
  • No more trial and error. Accurately measure the maximum power available.
  • Supports PoE up to 90W (PoE++). Test all PoE Classes (0-8) and Types (af/at/bt)
  • Identifies the powered pairs. Helps to determine PoE switch or mid-span injector.
  • Verify the PoE installation Pass / Fail indication to IEEE standards.
  • Extended Power Test. Some switches may provide power exceeding their IEEE Class rating. Measure the maximum power up to 90 watts.
  • Plus all of the familiar cable testing features of the VDV II Pro.

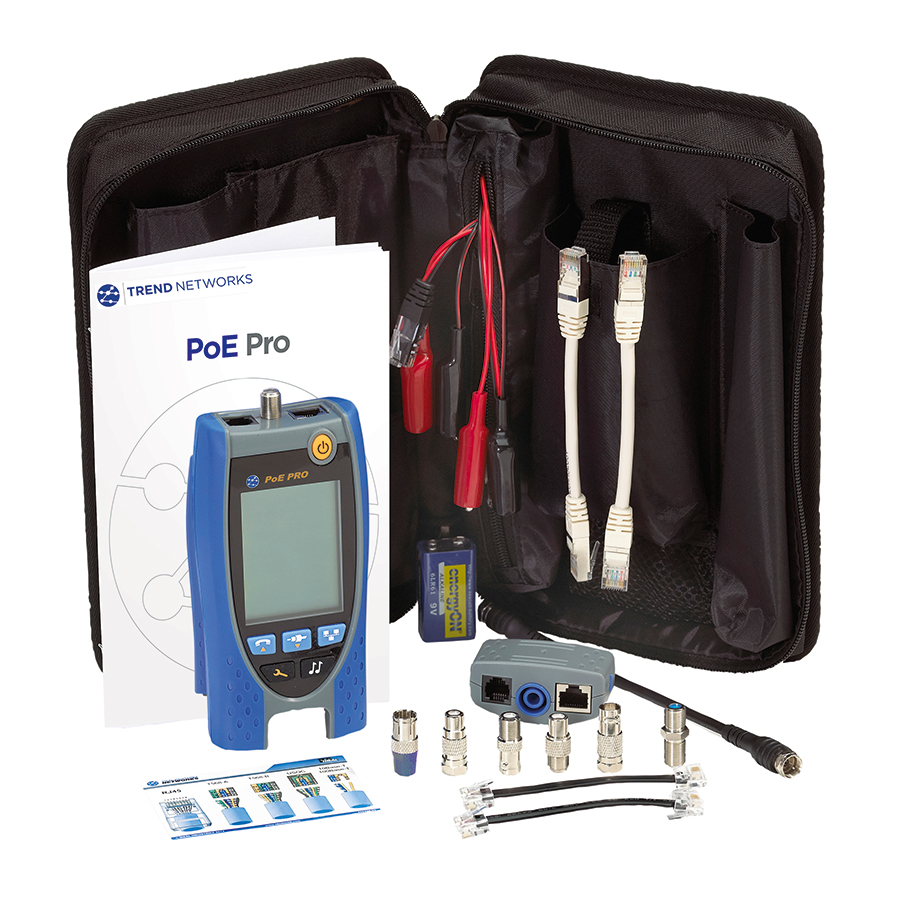

PoE TESTER - PoE Pro 1 x tester, 1 x dual port remote unit, 1 x coax remote unit, 1 x alkaline battery, 1 x multi-language user guide, 2 x RJ45 to alligator clip cable 390mm, 2 x screened RJ45 to RJ45 cable 150mm, 2 x RJ12 to RJ12 cable 100mm, 1 x F-type plug cable 230mm, 1 x F-81 barrel splice, 1 x BNC female to F-type male adaptor, 1 x BNC female to F-type female adaptor, 1 x RCA female to F-type adaptor, 1 x RCA female to F-type female adaptor, 1 x wallet wiring card, 1 x carry case.
ST-158006 - PoE PRO Data Cable and PoE Verifier
ST-158006 - PoE PRO Data Cable and PoE Verifier - Image 2
ST-158006 - PoE PRO Data Cable and PoE Verifier - Image 3
ST-158006 - PoE PRO Data Cable and PoE Verifier - Image 4
ST-158006 – PoE PRO Data Cable and PoE Verifier

$724.50

each

Out of stock

~ in-stock (buy now before they're gone)
UPC/EAN: 810093722631
Weights (lb/kg): 2.20 lb / 0.998 kg
Dimensions (in/mm): 7.5 x 2.4 x 12.6 in / 191 x 61 x 320 mm

Product Details

VDV II SERIES

  • Measures cable length
  • Provides distance to fault (TDR)
  • Identifies wiring errors instantly
  • Determines services running: ISDN, PBX and PoE
  • RJ-11, RJ-12, RJ-45 and COAX ports
  • Now comes with the AnyWARE cloud App for iPhone or Android.

Overview

The VDV II Series are easy to use cable testers that check the integrity of copper cables commonly found in domestic, commercial or industrial voice, data or video installations, including telephone wiring, data network and video/security cabling.

Employing state-of-the-art technology, VDV II offers functionality not previously available in a wiremapper. The advanced wiremap engine accurately displays complex wiring faults instantaneously while TDR (Time Domain Reflectometry) aids troubleshooting and improves on-site productivity.

Interested In Comparing Our VDV II Series Products?
Click Here For Our "VDV II Series Product Comparison Chart"

Frequently Asked Questions (FAQs)

Yes VDV II can test the wiring of all common cable categories as well as Coaxial and telephone cables.
300m (980ft) for wiremap and 600m (1960ft) for overall length.
Yes, create and manage test reports with the AnyWare Cloud App for iPhone or Android.
No, generic good quality patch cords can be used for testing.
VDV II series use standard 9v batteries.
12 Remotes for wiremap and 24 port identifiers.
Port identifiers provide a ports number on the screen of a VDV II allowing for correct labelling of ports.

Yes the VDV II series can withstand common PoE voltages and is protected up to 60v.

Yes, 1 Gb/s.
Yes, we include comprehensive manuals with every VDV II and if you need further assistance we have the following technical hot lines: France: +33(0)169355471, Germany: +49(0)8999686200, UK: +44(0)1925444446
